Smart Sense Pro: The Ultimate Intelligent Thermoregulator for Effortless Home Comfort

Model Options:

• Thermostat Colors: White or Black
• Voltage: 110-230V AC, 50/60Hz
• Max. Current Load: 16A for electric heating; 3A for gas boilers
• Temperature Accuracy: ±0.5℃
• Temperature Setting Range: 5-95℃

Voice Control Compatibility:

• Assistants: Yandex Alice, Amazon Alexa, Google Assistant

App Compatibility:

• Apps: Smart Life, Smart

Features:

1. Easy Installation and Use:

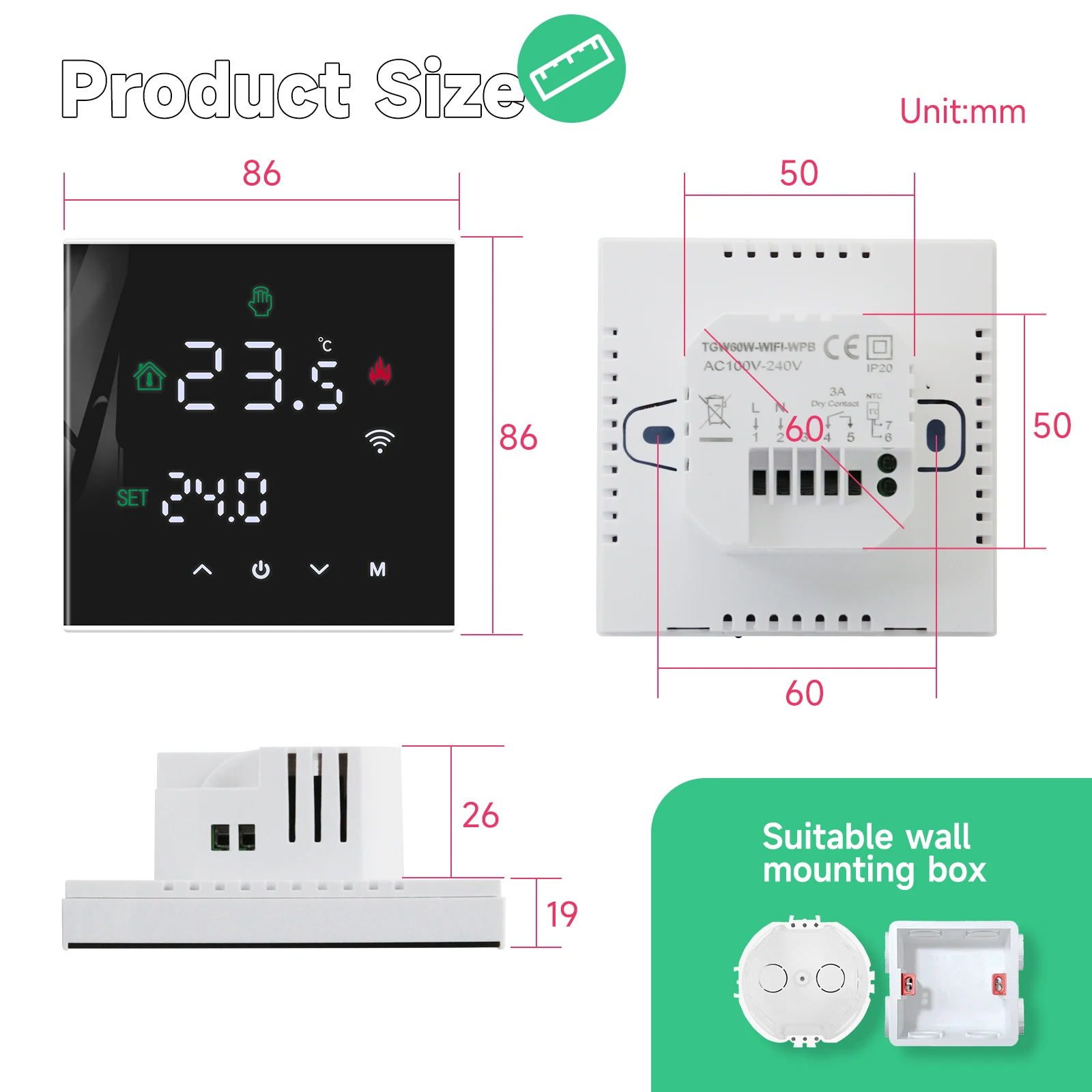

   • Designed for flush mounting in either an 86 x 86 mm square or a 60 mm round mounting box.
   • Can be installed with adhesive or screws, simplifying the installation process without the need for complex wiring.
2. Three Working Modes:

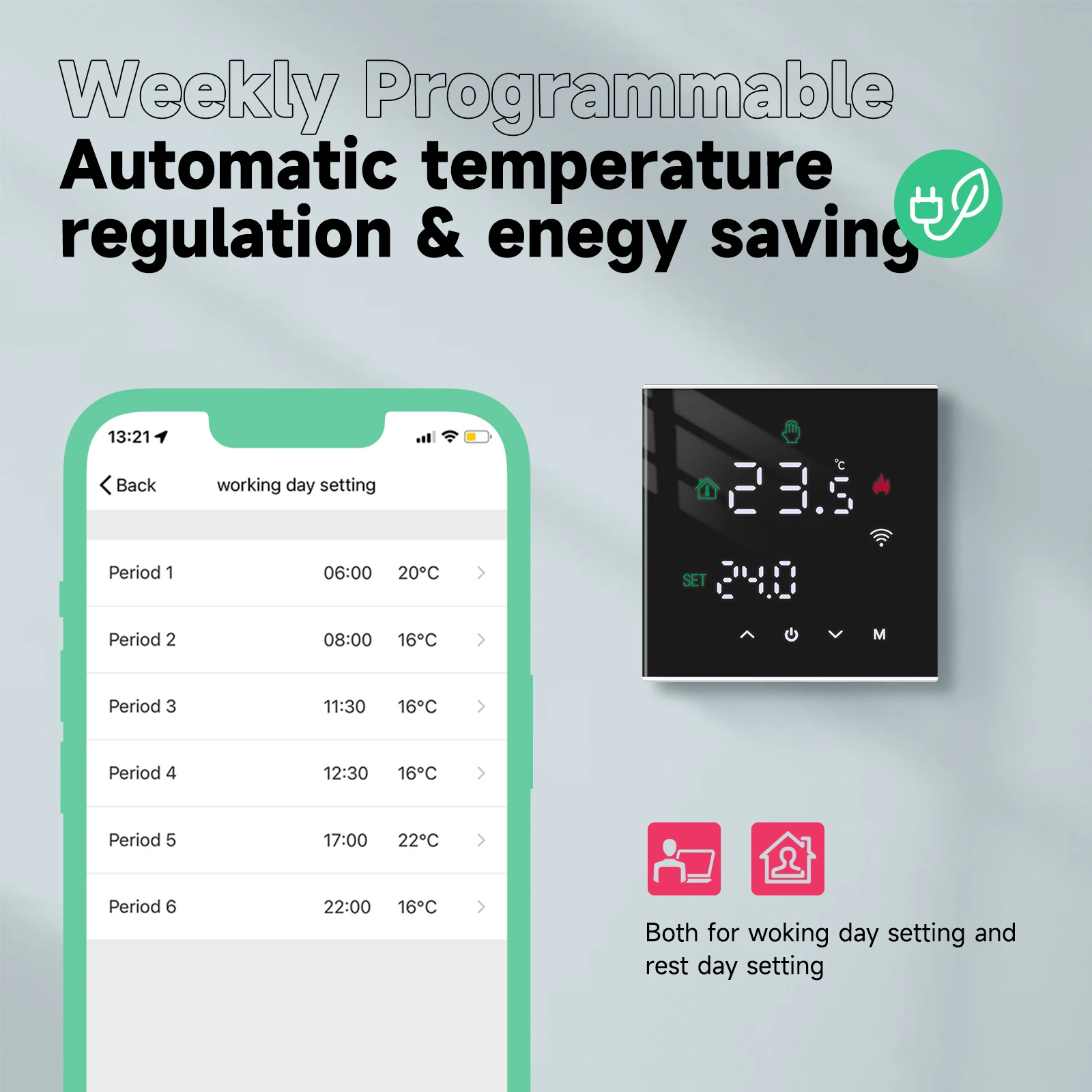

   • Programmable Mode: Set schedules for automatic temperature adjustments based on your lifestyle.
   • Manual Mode: Manually adjust the temperature as needed.
   • Temporary Manual Mode: Temporarily adjust the temperature for a specified period while in programming mode.
3. Three Sensor Modes:
   • Floor Sensor: Included in the EP model for electric underfloor heating.
   • Air Sensor: Standard in all models for monitoring the air temperature.
   • Air Control & Floor Limitation: Provides additional control options, particularly for mixed heating systems.
4. Model Differences:

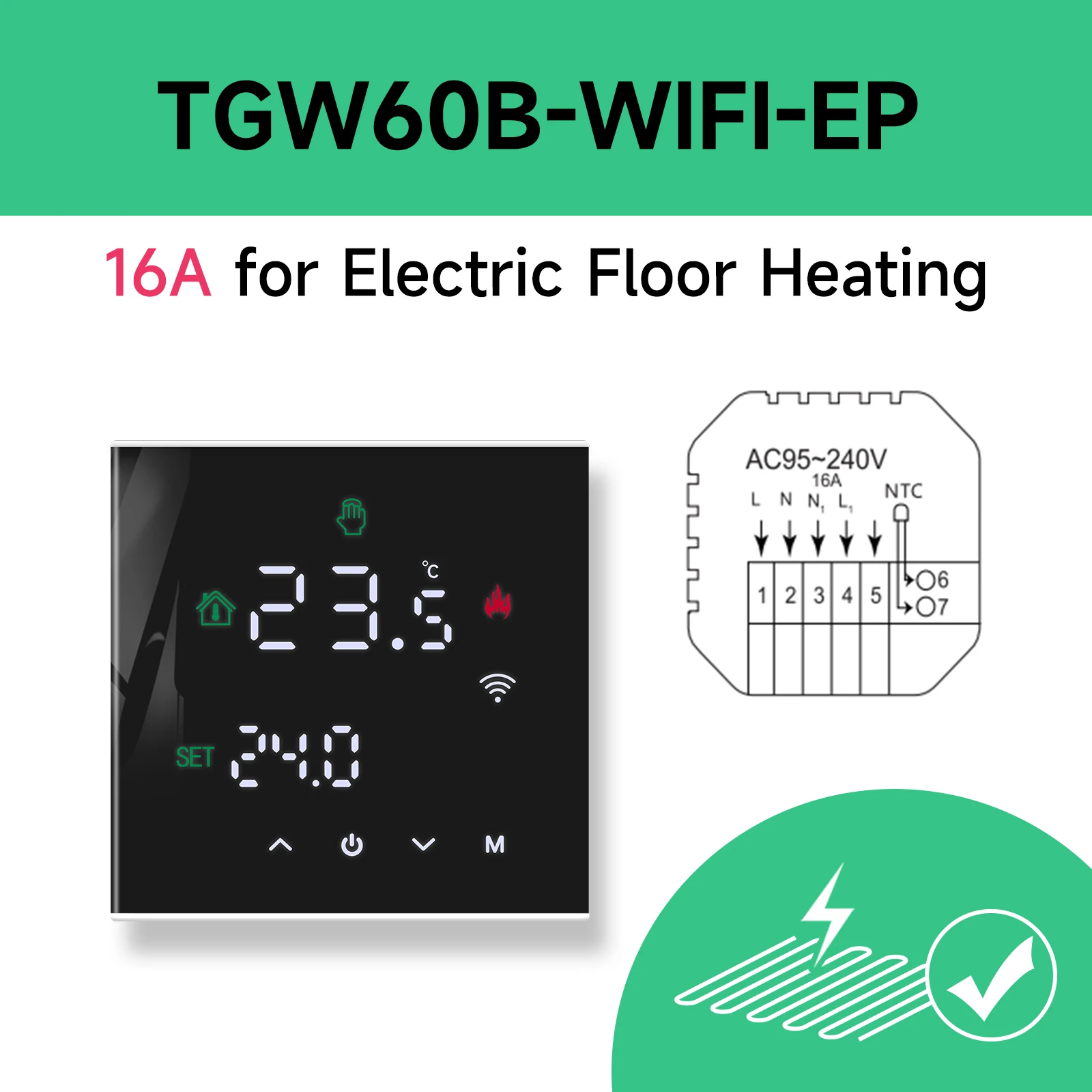

   • EP Mode: Designed for electric underfloor heating systems, supports up to 16A or 3600 watts. Controls heating cables and films.
   • WP Mode: Suitable for water floor heating systems, supports up to 3A. Controls normally closed (NC) or normally open (NO) electrothermal actuators, valves, and pumps. (Note: Does not work with a floor sensor.)

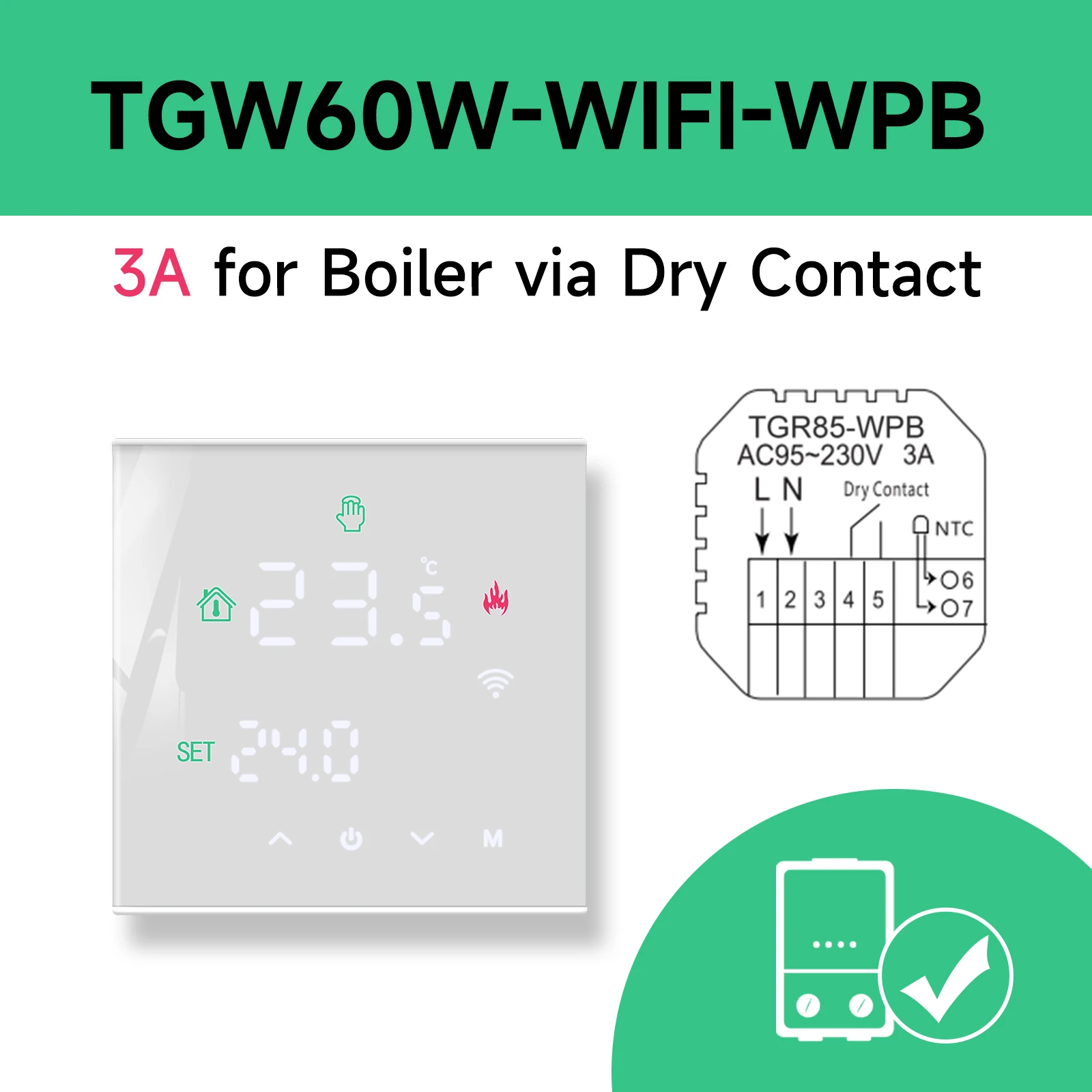

   • WPB Mode: Intended for gas boiler heating systems, supports up to 3A. Controls boilers or heaters via dry contact connections.
5. Power Out Memory Function:
   • Retains programming and settings even after a power outage, ensuring continuity of temperature control.

Installation Instructions:

1. Mounting:
   • Ensure you have an 86 x 86 mm square or a 60 mm round mounting box.
   • Use adhesive or screws to secure the thermostat in place.

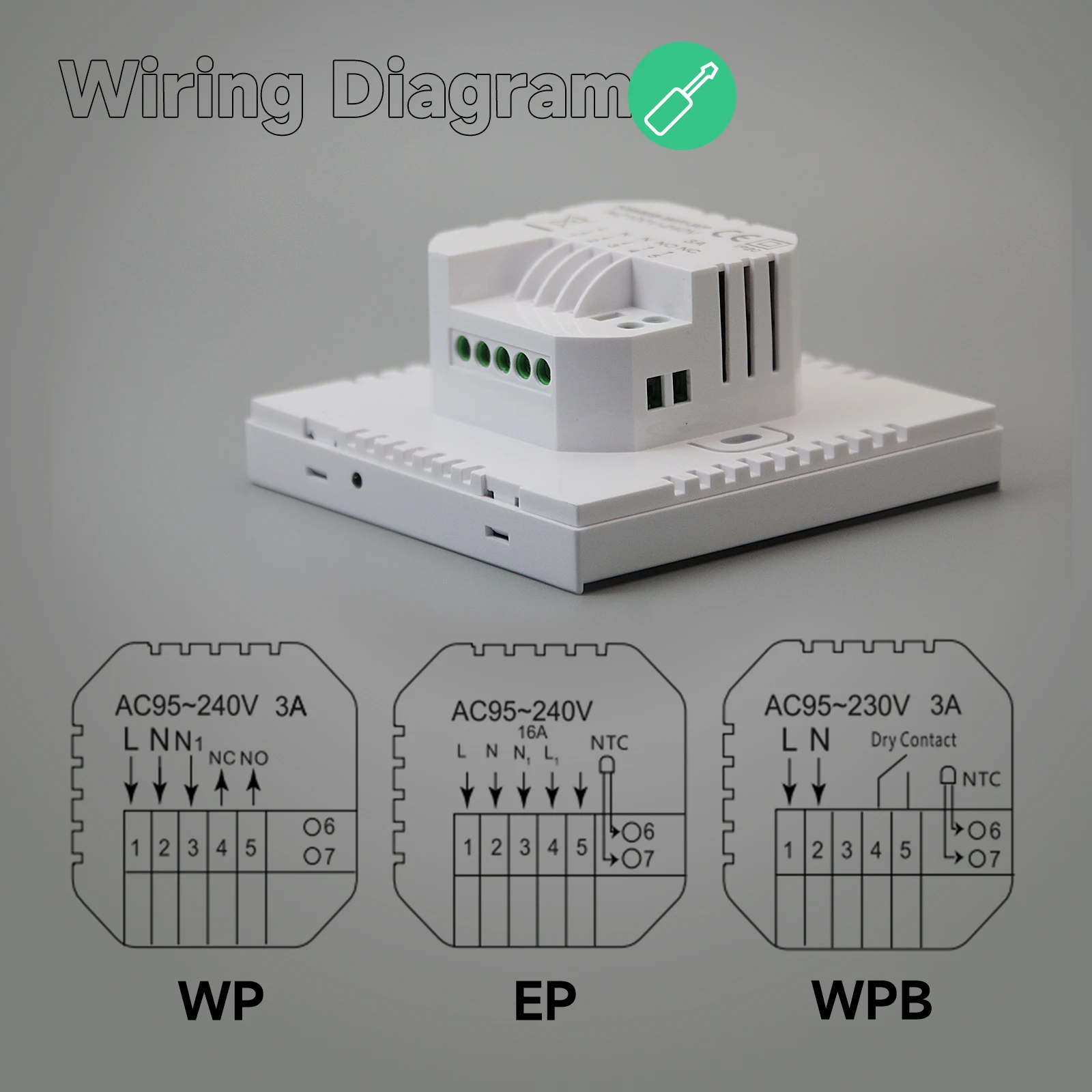

2. Wiring:
   • Follow the wiring diagram included in the user manual for correct installation based on your heating system (electric, water, or gas).
3. Configuration:

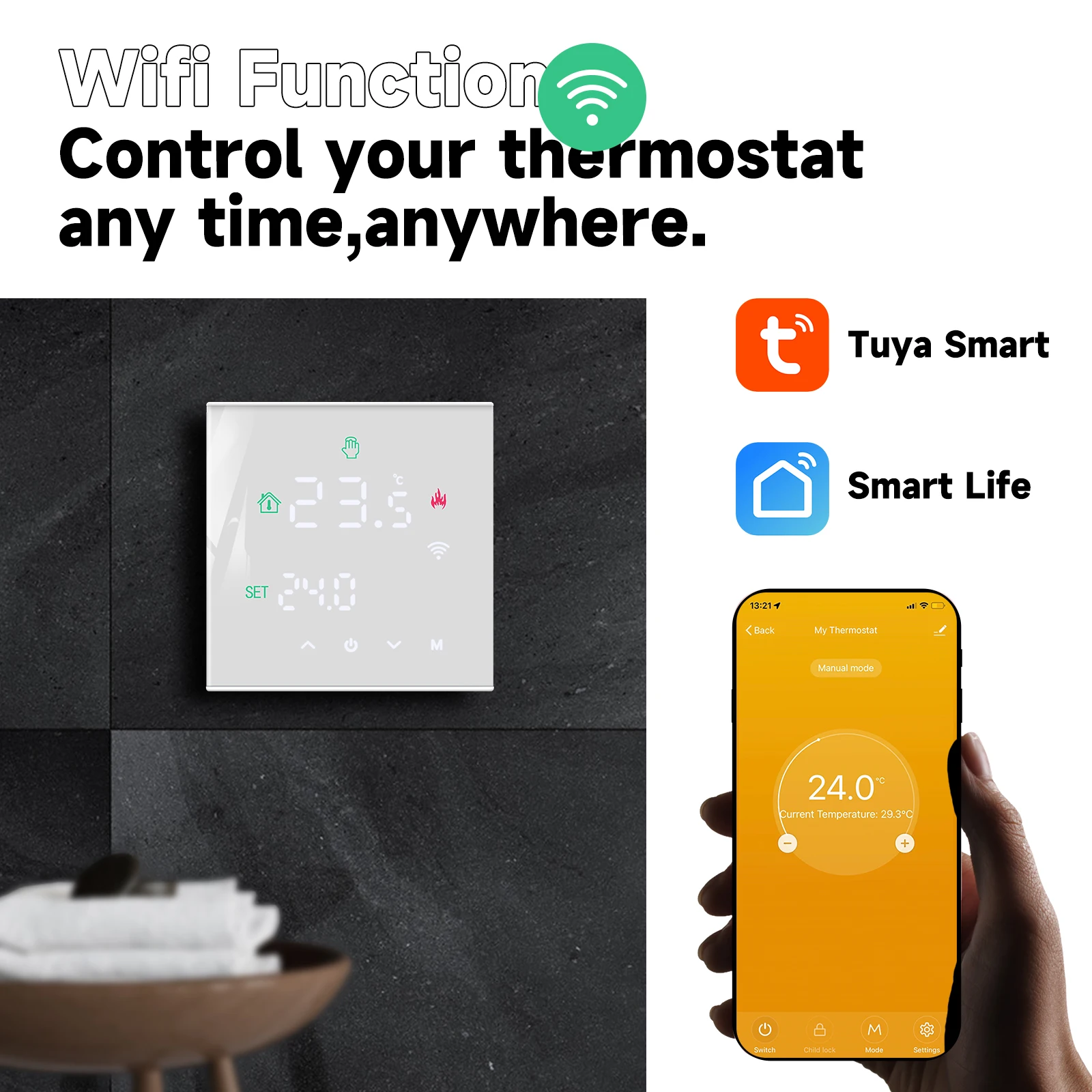

   • Use the app (Smart Life or Smart) to connect the thermostat to your Wi-Fi network.
   • Set up voice control via Yandex Alice, Alexa, or Google Assistant.

Package Includes:

• 1 x Smart Home Thermoregulator
• 1 x User Manual

Notes:

• Compatibility Check: Ensure the selected model matches your heating system (electric, water, or gas) and understand the limitations of each mode.
• Power Requirements: Verify that your home’s electrical system is compatible with the thermostat’s voltage and current specifications.

The Smart Home Thermoregulator offers a versatile and user-friendly solution for managing various heating systems with the convenience of smart technology and voice control.
